3,000 m³ Grass Carp RAS Project
- Water Type
- Freshwater
- Project Status
- Operational
- System Water Volume
- 3,000 m³
- Culture Tanks
- 24
- Culture Tank Size
- Ø8 m × 2.7 m
Project Overview

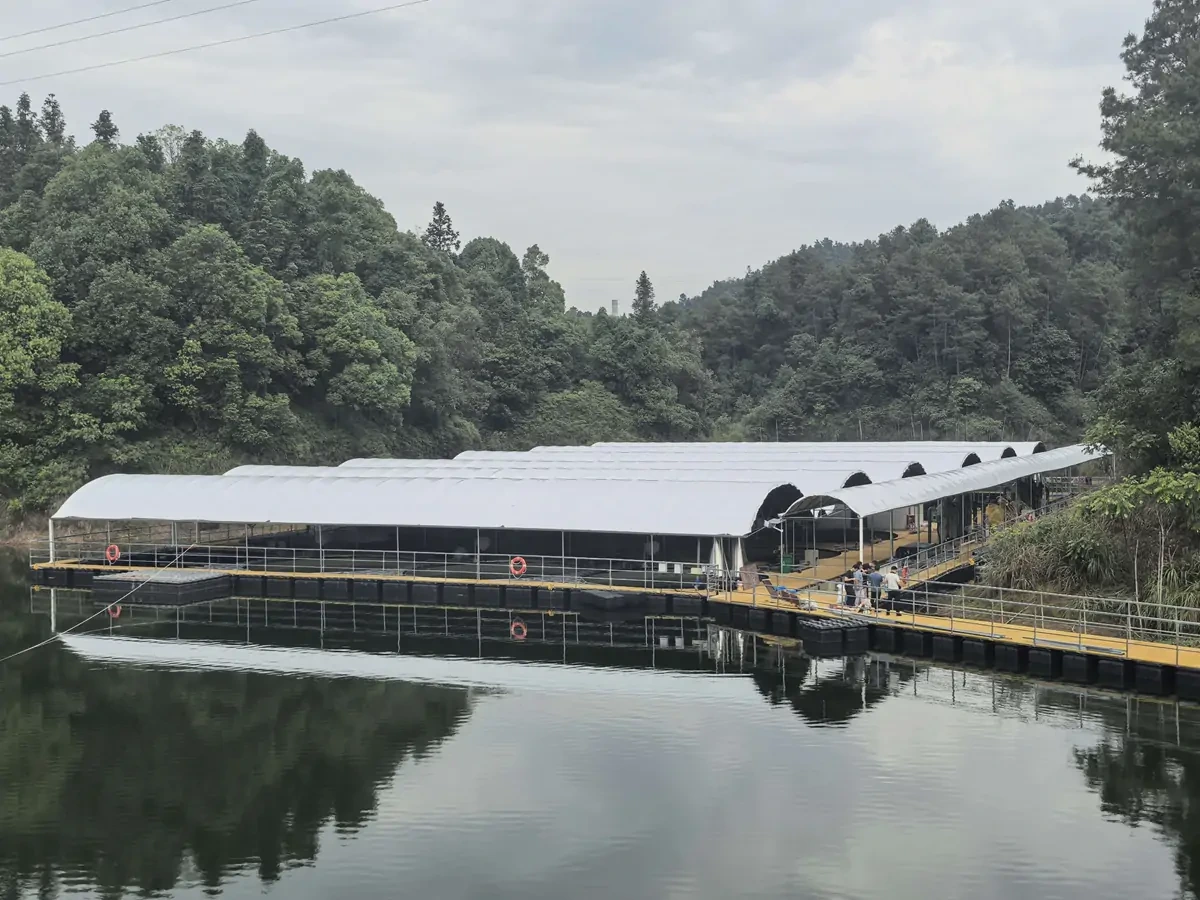

Located in Neijiang, Sichuan, China, this freshwater recirculating aquaculture project is used for grass carp grow-out in an experimental aquaculture project. The system has a water volume of 3,000 m³ and 24 culture tanks, each measuring Ø8 m × 2.7 m. The project is operational.
YUTANK’s scope covered system design, main equipment manufacturing, on-site installation and commissioning. The system combines mechanical filtration, protein separation, biological treatment, degassing, oxygenation, disinfection and aeration.
Related technical guide: How to Select RAS Equipment for a Commercial Fish Farm.
Explore RAS Solutions
System Configuration
- Aquaculture TanksQuantity: 24
- Drum FiltersQuantity: 3
- Protein SkimmersQuantity: 6
- Degassing TowersQuantity: 3
- Oxygen ConesQuantity: 6
- Oxygen GeneratorsQuantity: 3
- Ozone GeneratorsQuantity: 3
- MBBR Biofilter TankQuantity: 6
- Biological Filter Media
- UV SterilizersQuantity: 6
- Magnetic Bearing BlowersQuantity: 3
