2,500 m³ Tilapia RAS Project
- Project Type
- Commercial RAS Project
- Water Type
- Freshwater
- Project Status
- Delivered
- System Water Volume
- 2,500 m³
- Culture Tanks
- 36
- Culture Tank Size
- Ø6 m × 1.5 m
Project Overview

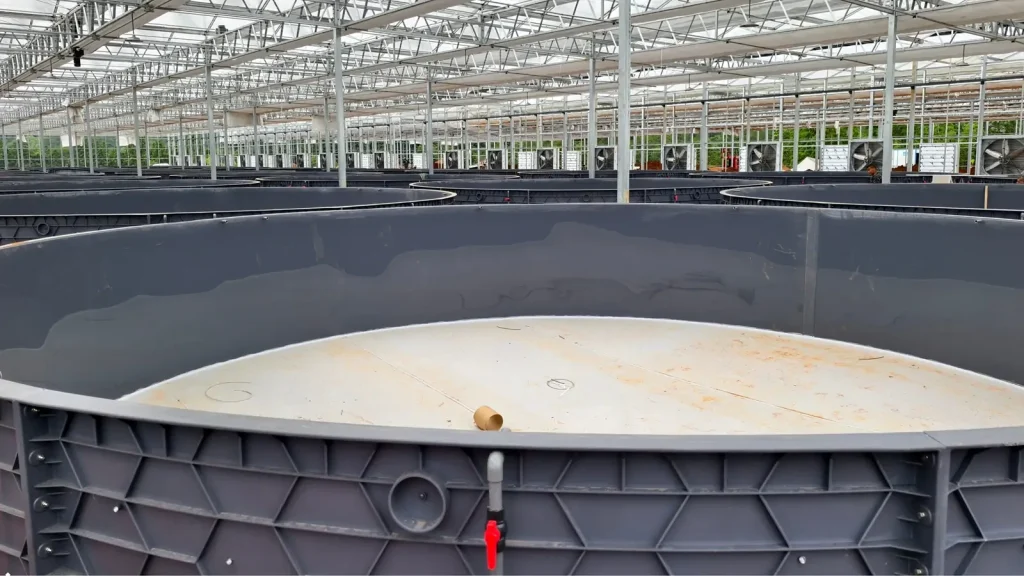

Located in Abha, Saudi Arabia, this commercial recirculating aquaculture project was launched in July 2024 for the full-cycle production of tilapia, covering incubation, nursery and grow-out stages. The project represents a planned investment of more than RMB 50 million and is designed with a total culture water volume of 5,000 m³. Phase one includes approximately 2,500 m³ of water across 36 culture tanks, with a planned annual production capacity of 450 tonnes.
Developed for Abha’s limited water resources and summer temperatures reaching 45°C, the RAS incorporates heat-resistant, energy-efficient and corrosion-resistant equipment. Mechanical filtration, biological treatment, oxygenation, disinfection and SCADA-based monitoring maintain a stable culture environment. With more than 95% of the water continuously recirculated, the system reduces freshwater consumption and wastewater discharge while supporting reliable year-round tilapia production.
YUTANK’s scope covered system design, main equipment manufacturing, on-site installation and commissioning.
Related technical guide: How to Select RAS Equipment for a Commercial Fish Farm. Another project for this species: 2,250 m³ Tilapia RAS Project.
Explore RAS Solutions

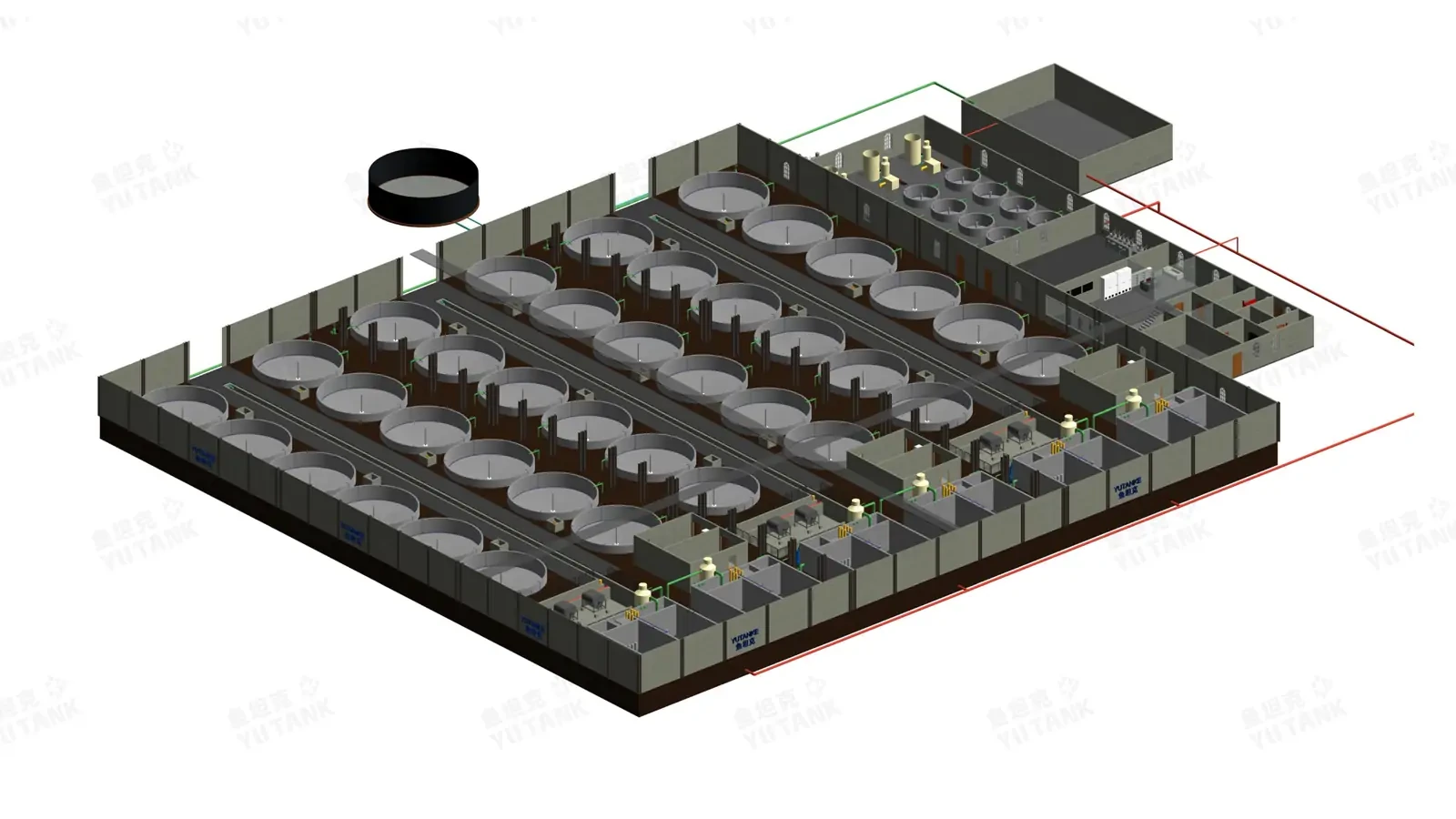

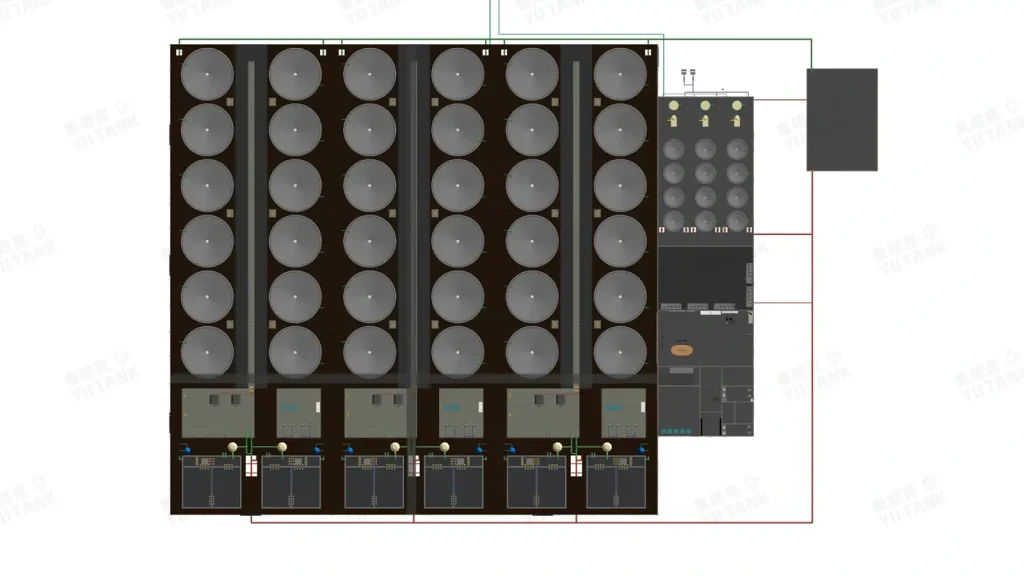

System Configuration
- Aquaculture TanksQuantity: 36
- Drum FiltersQuantity: 6
- Protein SkimmersQuantity: 6
- Degassing TowersQuantity: 6
- Oxygen ConesQuantity: 6
- Oxygen GeneratorsQuantity: 3
- Ozone GeneratorsQuantity: 3
- MBBR Biofilter TankQuantity: 12
- Biological Filter Media
- UV SterilizersQuantity: 6
- Roots BlowersQuantity: 6
- ReservoirsQuantity: 6
