2,160 m³ Tilapia RAS Project
- Project Type
- Commercial RAS Project
- Water Type
- Freshwater
- Project Status
- Operational
- System Water Volume
- 2,160 m³
- Culture Tanks
- 52
- Culture Tank Size
- Ø6 m × 1.5 m
Project Overview

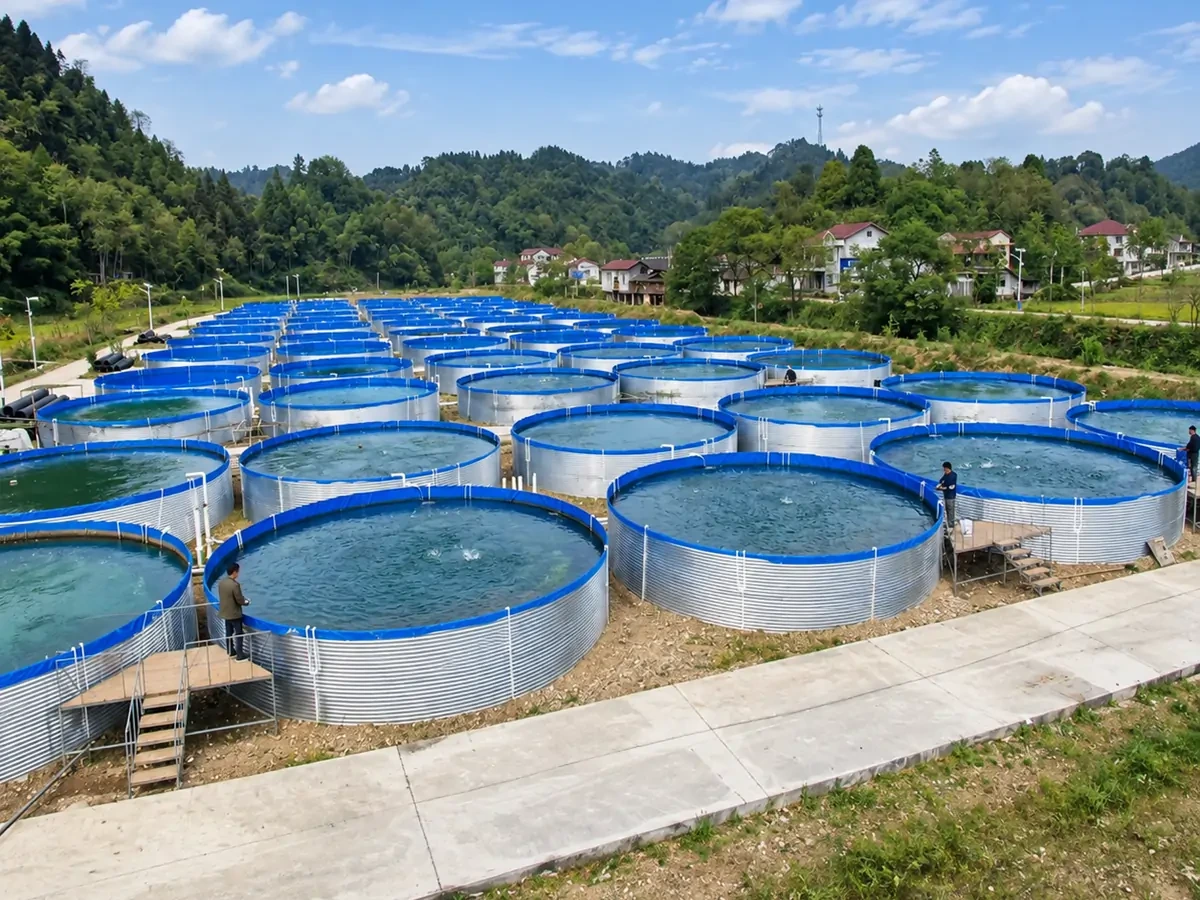

Located in Kazakhstan, this freshwater recirculating aquaculture project is used for tilapia grow-out. The system has a water volume of 2,160 m³ and 52 culture tanks, each measuring Ø6 m × 1.5 m. The project is operational.
YUTANK’s scope covered system design, main equipment manufacturing, on-site installation and commissioning. The system combines mechanical filtration, protein separation, biological treatment, degassing, oxygenation, disinfection and aeration.
Related technical guide: How to Select RAS Equipment for a Commercial Fish Farm. Another project for this species: 2,250 m³ Tilapia RAS Project.
Explore RAS Solutions
System Configuration
- Aquaculture TanksQuantity: 52
- Drum FiltersQuantity: 12
- Protein SkimmersQuantity: 6
- Degassing TowersQuantity: 6
- Oxygen ConesQuantity: 6
- Oxygen GeneratorsQuantity: 6
- Ozone GeneratorsQuantity: 6
- MBBR Biofilter TankQuantity: 12
- Biological Filter Media
- UV SterilizersQuantity: 12
- Roots BlowersQuantity: 16
- ReservoirsQuantity: 2
