1,200 m³ Pacific White Shrimp and Largemouth Bass RAS Project
- Project Type
- Commercial RAS Project
- Water Type
- Freshwater
- Project Status
- Operational
- System Water Volume
- 1,200 m³
- Culture Tanks
- 30
- Culture Tank Size
- Ø6 m × 1.5 m
Project Overview

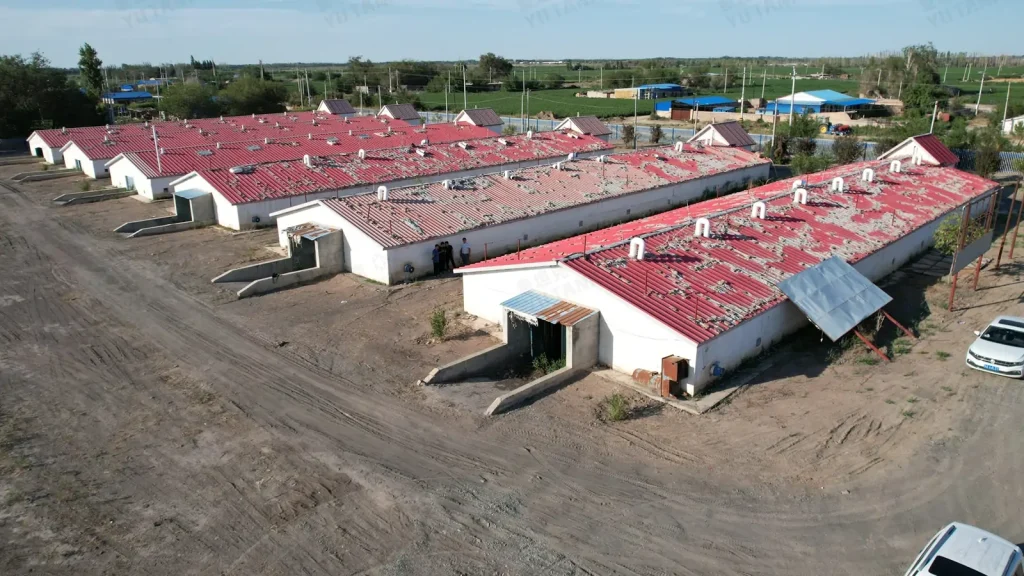

Located in Fangcaohu, Xinjiang, China, this commercial freshwater recirculating aquaculture project is used for pacific white shrimp and largemouth bass grow-out. The system has a water volume of 1,200 m³ and 30 culture tanks, each measuring Ø6 m × 1.5 m. The project is operational.
YUTANK’s scope covered system design, main equipment manufacturing, on-site installation and commissioning. The system combines mechanical filtration, protein separation, biological treatment, degassing, oxygenation, disinfection and aeration.
Related technical guide: How to Select RAS Equipment for a Commercial Fish Farm.
Explore RAS Solutions

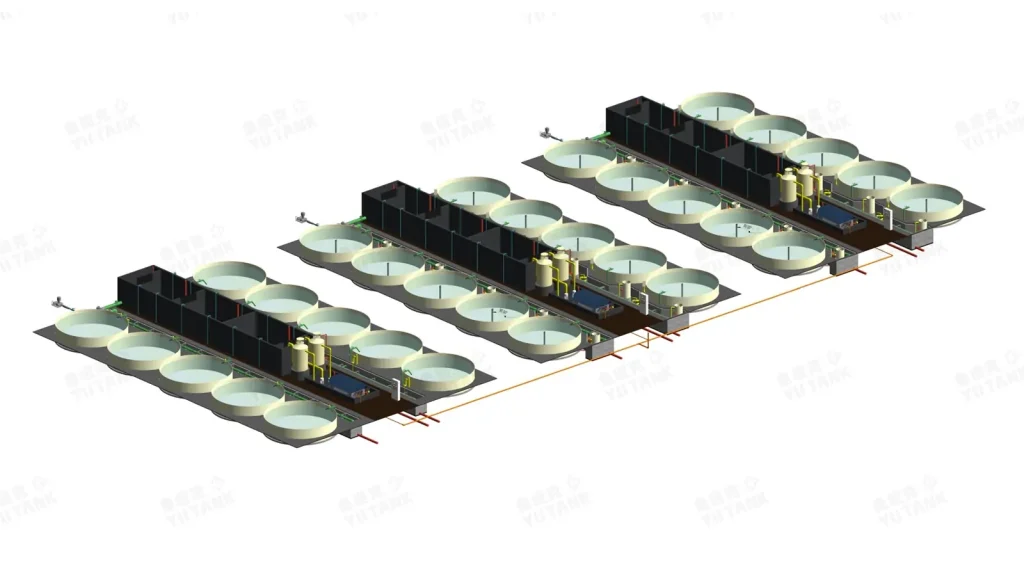

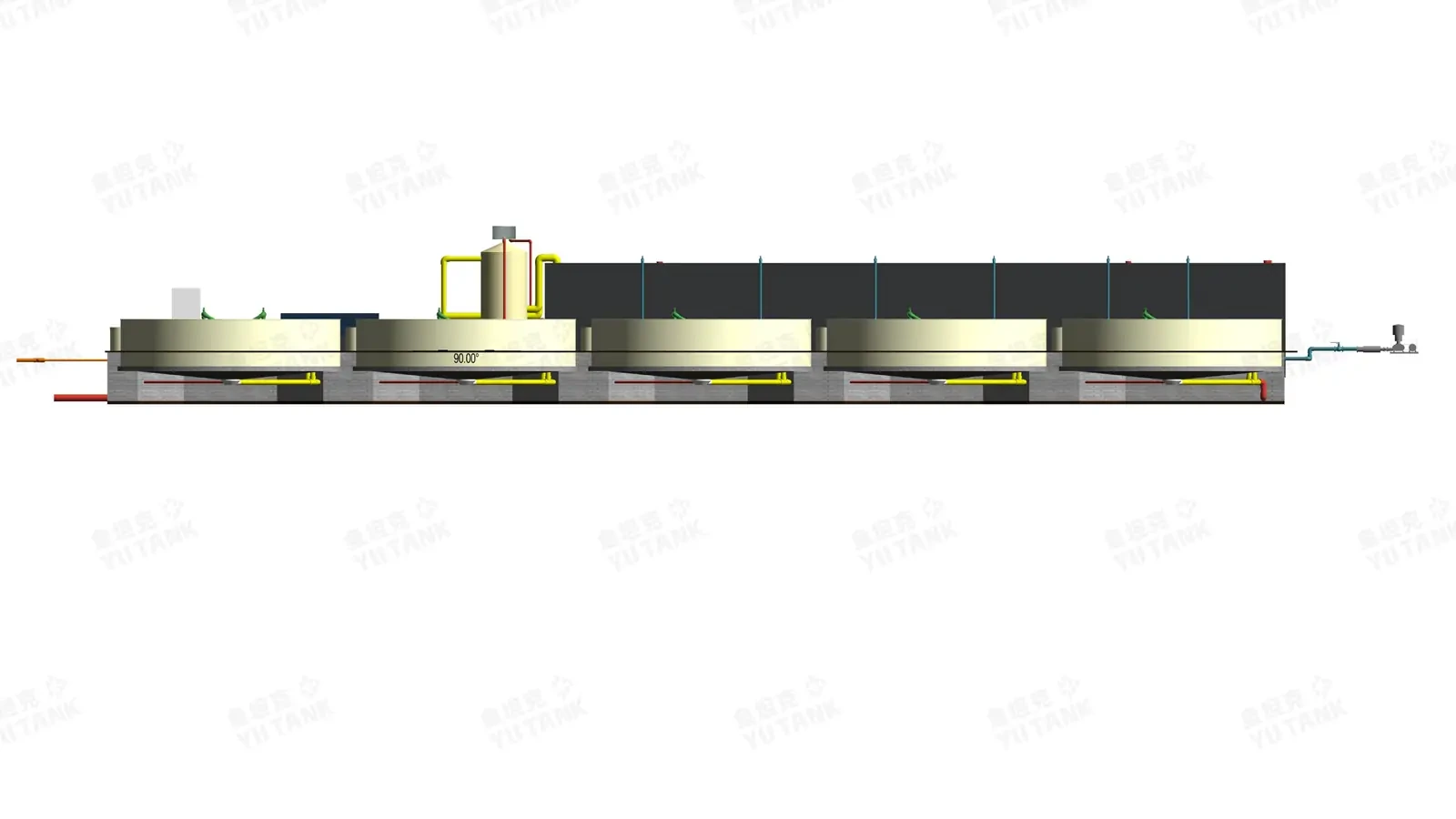

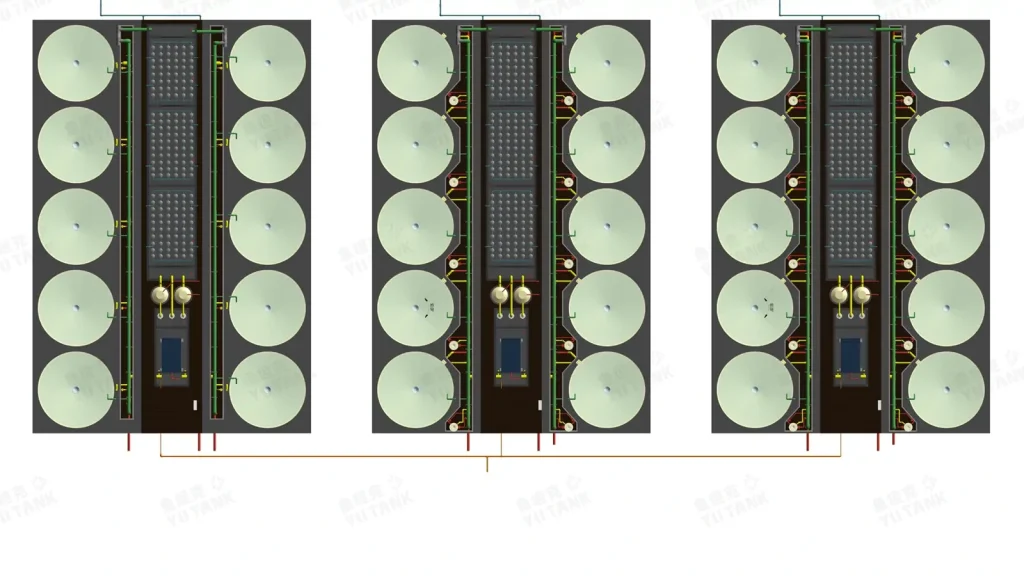

System Configuration
- Aquaculture TanksQuantity: 30
- Drum FiltersQuantity: 6
- Protein SkimmersQuantity: 6
- Degassing TowersQuantity: 3
- Oxygen ConesQuantity: 6
- Oxygen GeneratorsQuantity: 3
- Ozone GeneratorsQuantity: 3
- MBBR Biofilter TankQuantity: 6
- Biological Filter Media
- UV SterilizersQuantity: 6
- Roots BlowersQuantity: 6
- ReservoirsQuantity: 3
