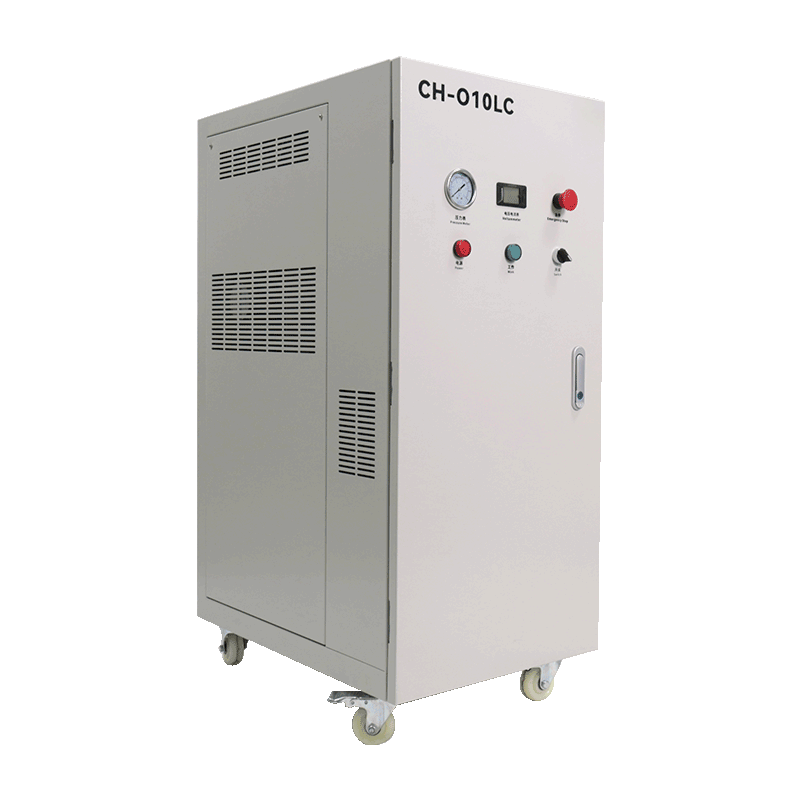

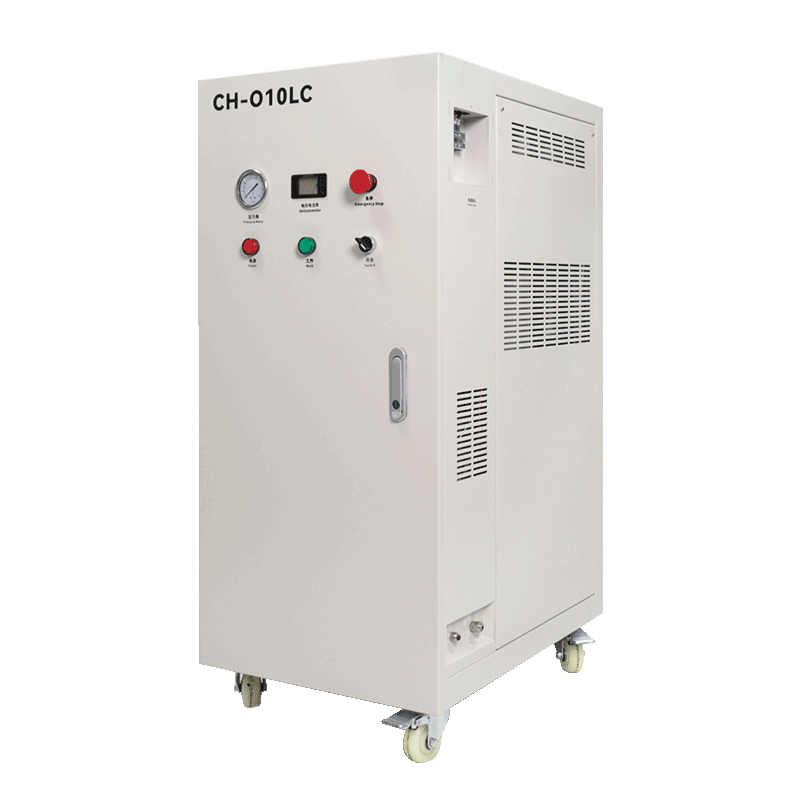

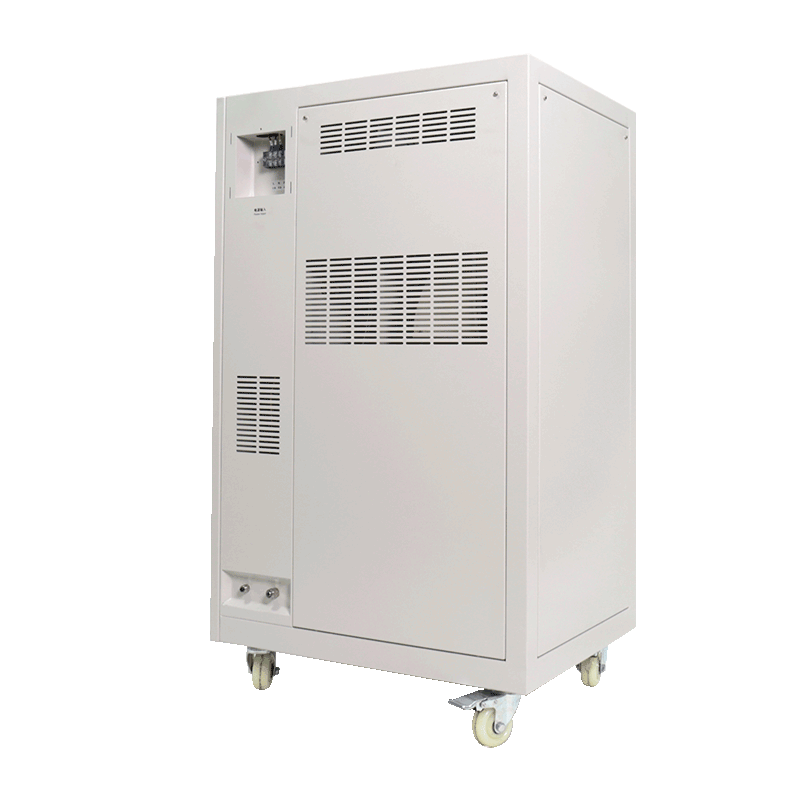

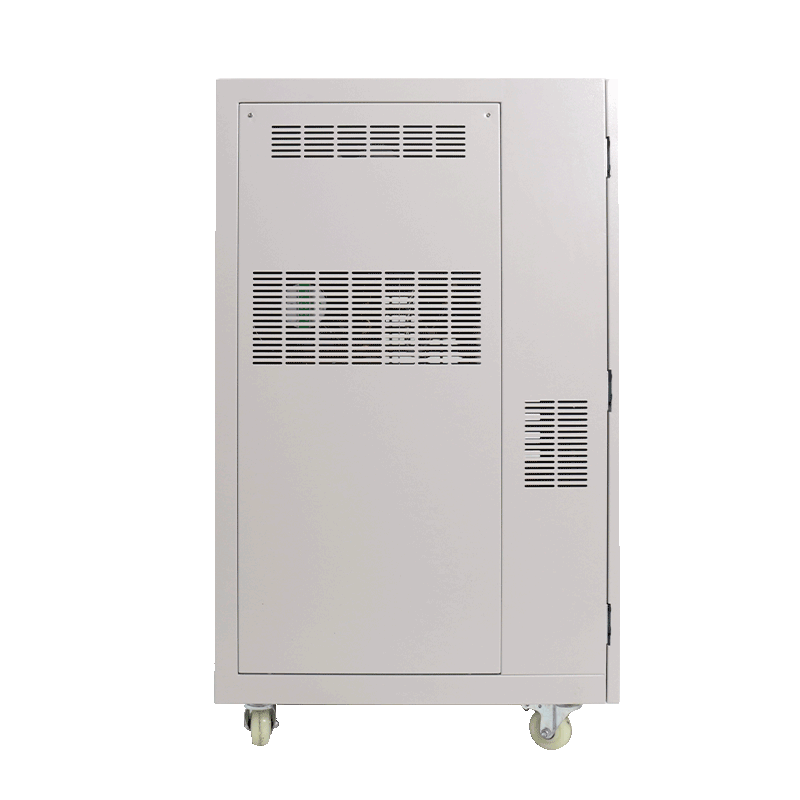

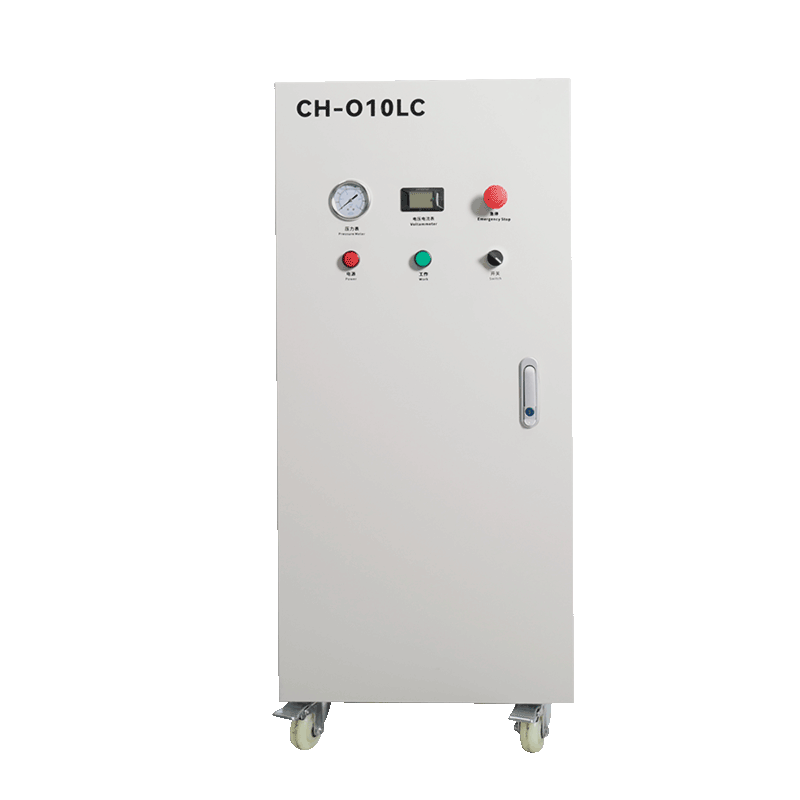

    On-Site High-Purity Oxygen Production for Intensive Aquaculture The YUTANK Industrial Oxygen Generator utilizes advanced Pressure Swing Adsorption (PSA) technology to deliver a continuous, cost-effective supply of oxygen (93% ± 3% purity). Designed specifically for high-density Recirculating Aquaculture Systems (RAS) and commercial hatcheries, this system eliminates the logistical risks and high recurring costs of liquid oxygen tanks or bottled gas.

    • Cost Efficiency: Drastically reduces long-term operational costs compared to purchasing liquid oxygen.

    • Reliable Purity: Industrial-grade molecular sieves ensure stable oxygen concentration for optimal fish health.

    • System Integration: Delivers high-pressure output (0.1–0.4 MPa) ideal for driving Oxygen Cones to achieve supersaturation.

    GET A QUOTE
    WhatsApp

    Share：

    Accessories：

    鳗鱼集污盘
    View related accessories
    Parameter Category Specification Details
    Product Model YUTANK PSA Series (Industrial Grade)
    Technology Pressure Swing Adsorption (PSA) / Vacuum Swing Adsorption (VSA)
    Oxygen Purity 93% ± 3% (Standard for Aquaculture)
    Output Pressure 0.1 – 0.4 MPa (Adjustable)
    Flow Rate 10 LPM – 500+ LPM (Customizable to scale)
    Power Supply 220V/380V, 50Hz/60Hz (Global compatibility)
    Dew Point ≤ -40°C
    Component Life Molecular Sieve > 10 years (with proper maintenance)
    Control System PLC Intelligent Control + Touch Screen HMI
    Integration Compatible with Ozone Generators & Oxygen Cones

    • Product Positioning & Application The YUTANK Oxygen Generator is the “Heart of Oxygenation” for modern factory-based aquaculture. It is essential for super-intensive farms (Eel, Salmon, Shrimp) where stocking densities exceed natural carrying capacities. It ensures dissolved oxygen (DO) stability regardless of weather or external supply chain disruptions.

    • Structure & Working Principle

      • Air Separation: Uses air compressors to force ambient air through zeolite molecular sieves. Nitrogen is adsorbed under pressure, allowing high-purity oxygen to pass through.

      • Cycling: Twin-tower design allows one tower to produce oxygen while the other regenerates (releases nitrogen), ensuring uninterrupted flow.

      • Delivery: Oxygen is buffered in a storage tank and regulated to the precise pressure required for downstream equipment like Oxygen Cones or Nano Diffusers.

    • Core Advantages & Differences

      • ROI Focus: While the initial investment is higher than aerators, the elimination of recurring liquid oxygen bills typically results in an ROI within 12–18 months for large farms.

      • Safety & Stability: Low-pressure generation is safer than storing cryogenic liquid oxygen. The automated PLC system monitors purity in real-time.

      • Smart Integration: Seamlessly powers YUTANK Ozone Generators (which require oxygen feed for efficiency) and High-Pressure Oxygen Cones for 95%+ absorption rates.

    • Environment & Durability Built with corrosion-resistant cabinetry and industrial-grade compressors designed for 24/7 continuous duty in humid aquaculture environments.

    • Q: Why choose a generator over liquid oxygen tanks?

      • A: Liquid oxygen requires constant refilling, dependent on supplier logistics and subject to price volatility. A YUTANK Oxygen Generator provides “Oxygen Independence”—you produce what you need on-site, with electricity being the only operating cost.

    • Q: What maintenance is required?

      • A: Routine maintenance is minimal, primarily involving the regular replacement of air intake filters and compressor oil (every 2000-4000 hours). The core molecular sieve typically lasts over 10 years if the air source is kept clean and dry.

    • Q: Can this connect directly to my fish tanks?

      • A: While possible via diffusers, we strongly recommend connecting the generator to Oxygen Cones or a Protein Skimmer. Direct diffusion into open tanks wastes gas (low absorption), whereas cones achieve >90% absorption efficiency.

    • Q: Does it work with the Ozone Generator?

      • A: Yes, it is the perfect companion. Ozone generators are far more efficient and produce higher concentrations of ozone when fed with 93% pure oxygen compared to standard air.
